NEWMAT Stretch Ceilings @ ITMS Control Room, Noida

ITMS Control Room, Noida: Helping create modern workspaces using NEWMAT’s 3D Stretch Ceilings

Client: ITMS Control Room, Noida.

Location:Noida, Uttar Pradesh.

Installer: Newmat India.

Products used: TOB3M NEWLIGHT Translucent Ceilings + Osram BackLED Systems + Aluminum and MS Frames.

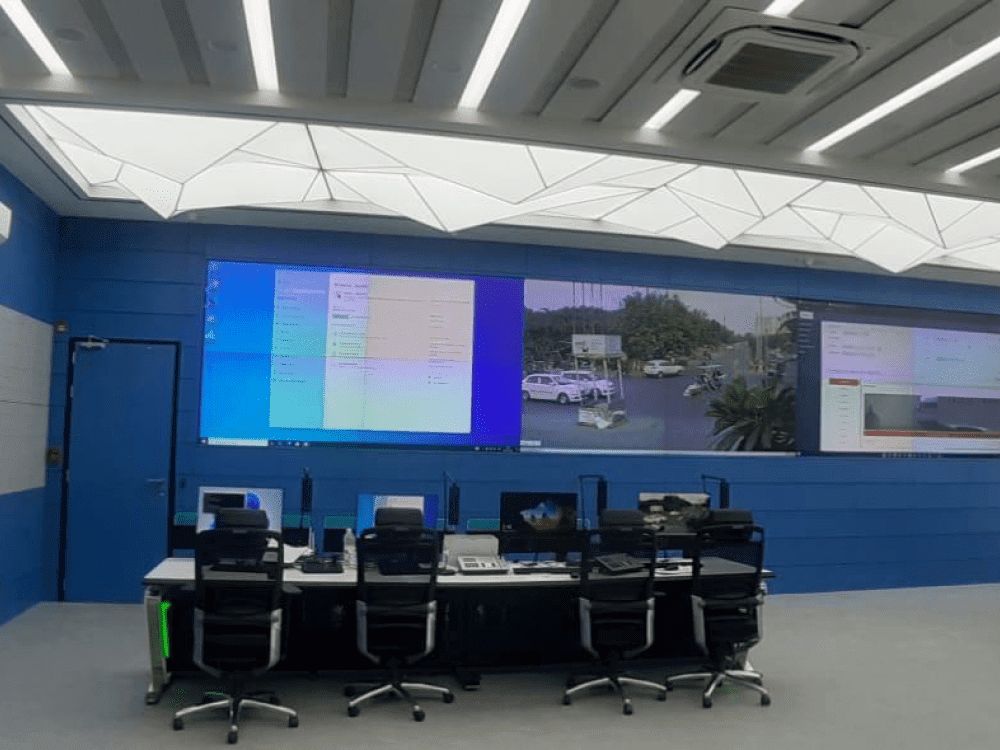

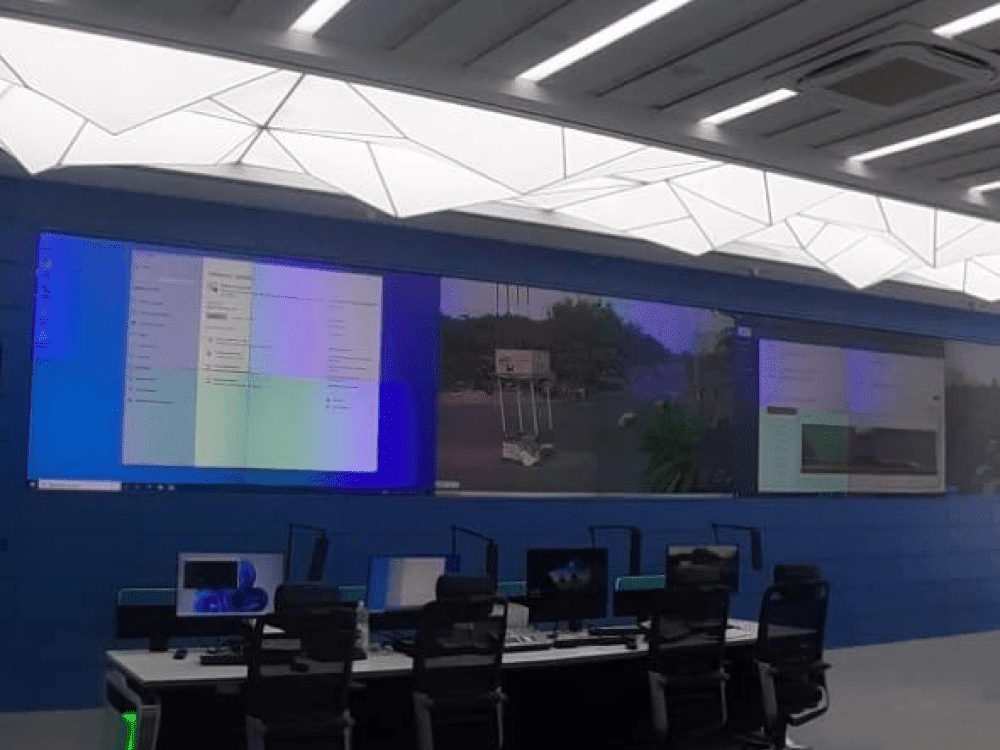

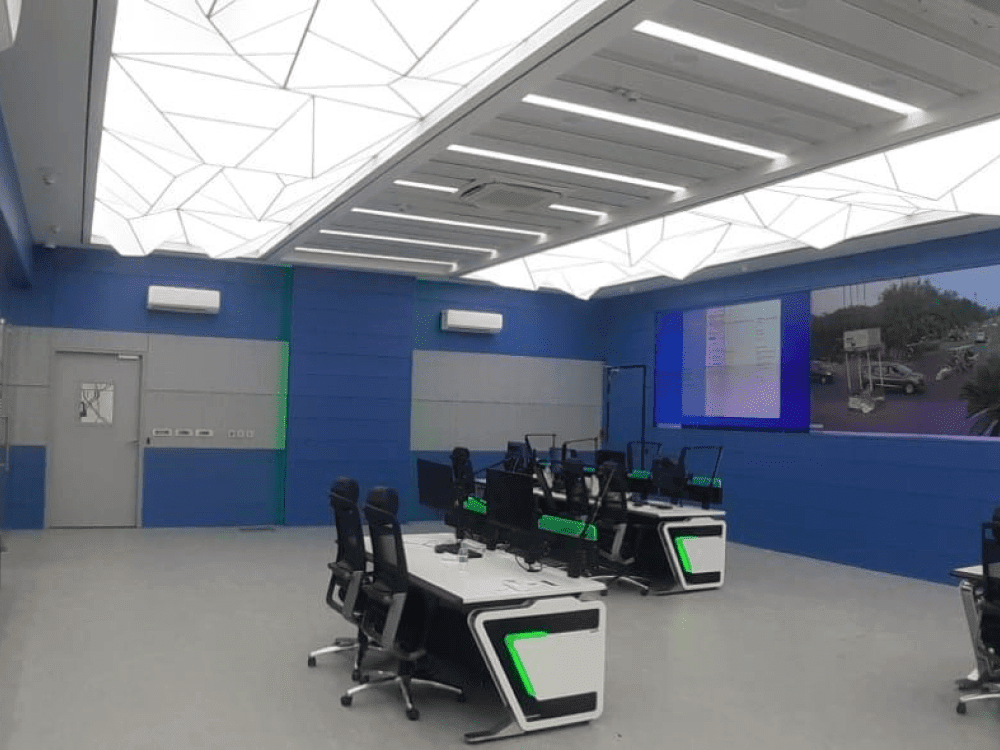

Project Details: The Indian government has taken a remarkable initiative to improve employee workplaces, consequently boosting productivity. An example is the ITMS Control Room in Noida Sector 94, which plays a crucial role in traffic management and road safety through advanced surveillance and monitoring systems. The interior design of this project focuses on enhancing aesthetic appeal, ergonomics, and providing a sophisticated, high-end workspace for the control room operators. NEWMAT India was entrusted with the responsibility of creating a modern lighting element that not only acts as the key design feature but also provides ambient lighting to the space. We delivered!

Since no carpentry was allowed in the whole project, we were asked to develop a custom frame using aluminum. Aircraft-grade aluminum (5052) was chosen for this job to ensure that the structure outlasts everything else. The structure also acted as a heat dissipation system for Osram’s LED system, which serves as the light source for the backlighting. Osram’s square lens technology helps minimize the overall quantity of LEDs to ensure minimal wattage of the system.

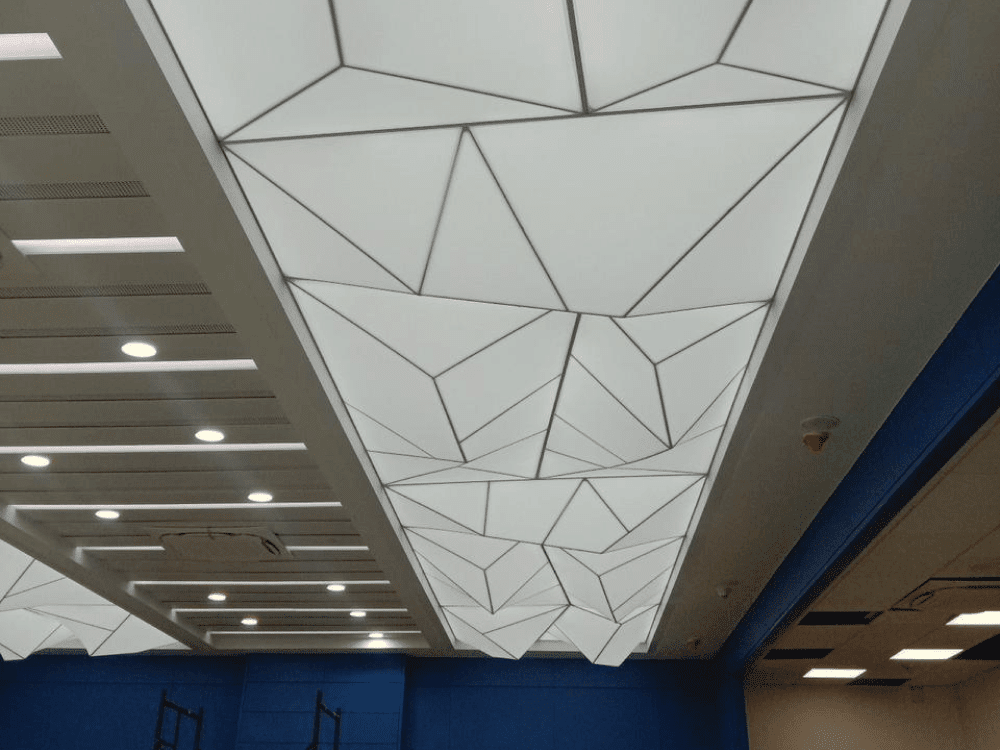

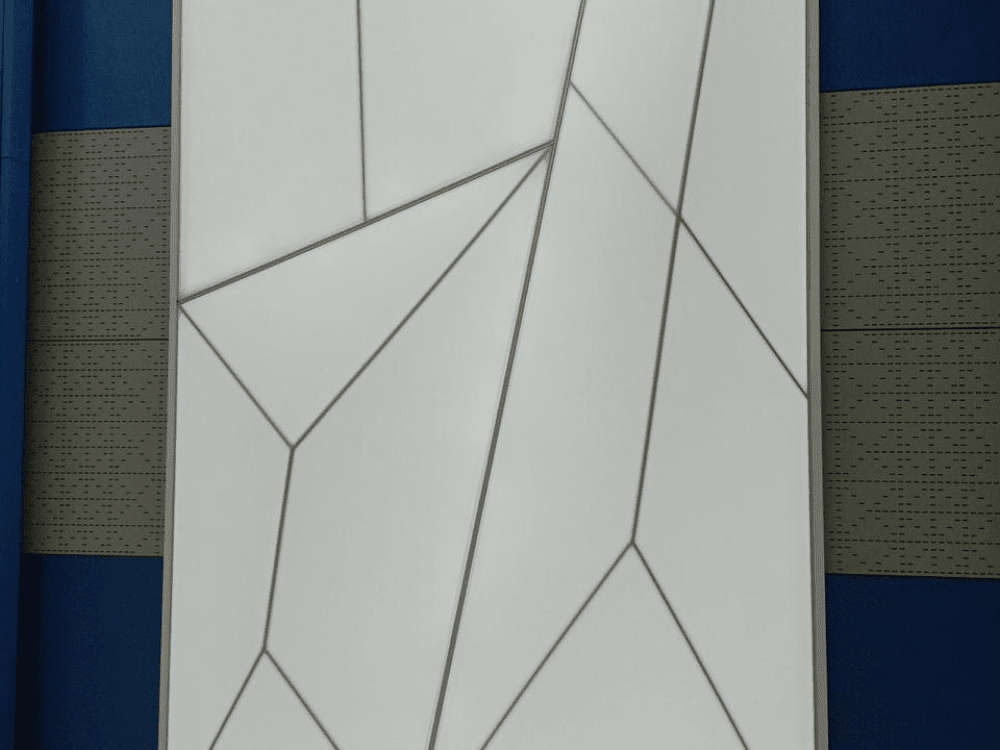

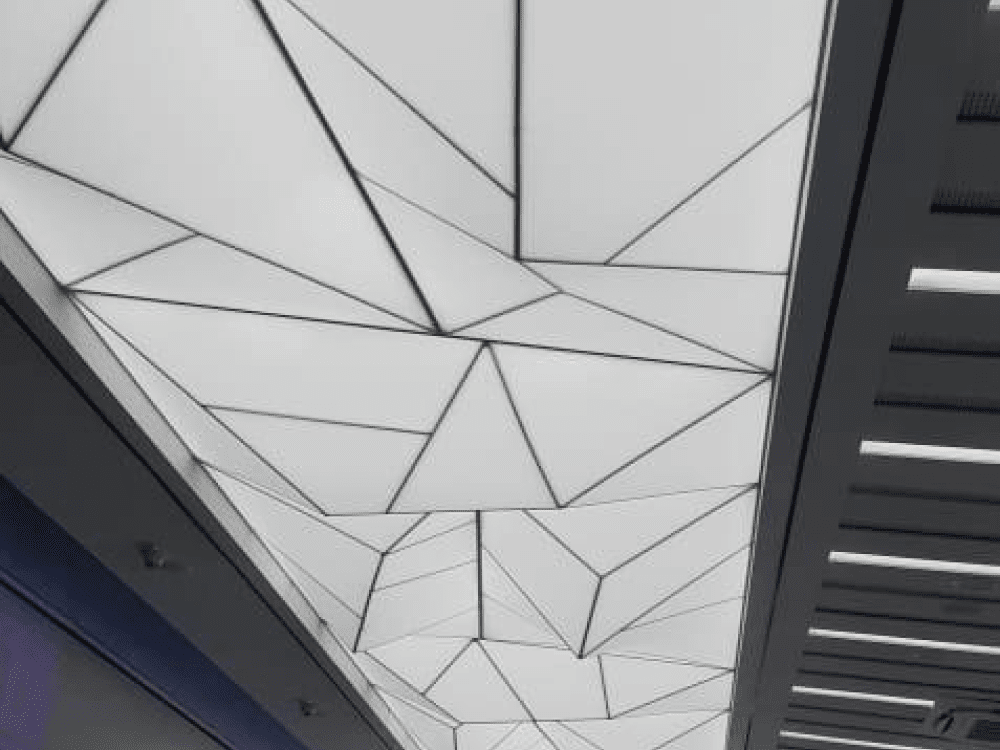

A total of 28 ceilings were installed using TOB3M coupled with anodized aluminum ghost profiles, ensuring durability and a sleek finish. Each ceiling is designed with a 3D black powder-coated MS frame to achieve the final 3D result, adding depth and character to the space. This project demonstrates our commitment to delivering high-quality, customizable stretch ceiling solutions that meet the unique requirements of our clients and transform ordinary spaces into extraordinary ones.

Transform Your Space with NEWMAT Stretch Ceilings

If you’re seeking to elevate your commercial projects, NEWMAT Stretch Ceilings open a world of possibilities. From breathtaking skylights to dynamic lighting integration, they deliver both aesthetic and practical value.
